Monolayer Graphene on 8-inch (200mm) Diameter Si/SiO2 wafer

$800.00

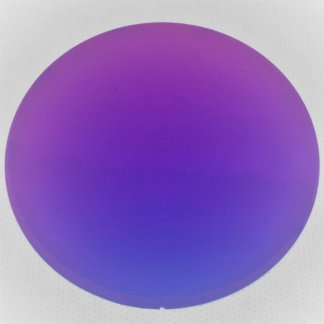

Monolayer Graphene on 8-inch (200mm) Diameter Si/SiO2 wafer

Description

Monolayer Graphene

Transparency: >97%

Graphene Coverage: 100% with sporadic adlayers (see optical image above)

FET mobility*: >2700 cm2/(V∙s)

Sheet resistance*: 430 ± 50 Ω/sq

Grain size: >80 um

Raman D/G ratio*: Indistinguishable to 0.03

Substrate

Our 8-inch (200mm) Si/SiO2 wafers are sourced from a reliable, quality-assured supplier.

Type/Doping: P/B

Wafer Thickness : 700 – 750 μm

Oxide Thickness: 300 nm

Resistivity: 1 – 25 (ohm-cm)

Orientation: <1-0-0>

Growth Method: CZ

Metal Impurities: 1.00e10 – 5.00e10 (at/cm2)

Raman Spectra



monolayer graphene on 8-inch (200mm) diameter Si:SiO2 wafer Raman

SEM Image

Optical Image

Product Enquiry
